| Brand Name : | DORCO |
| Model Number : | D51K - 630 |
| Price : | 25000 - 147000 USD Per Set |
| Delivery Time : | 45-75 Working Days |
| Payment Terms : | L/C,T/T |

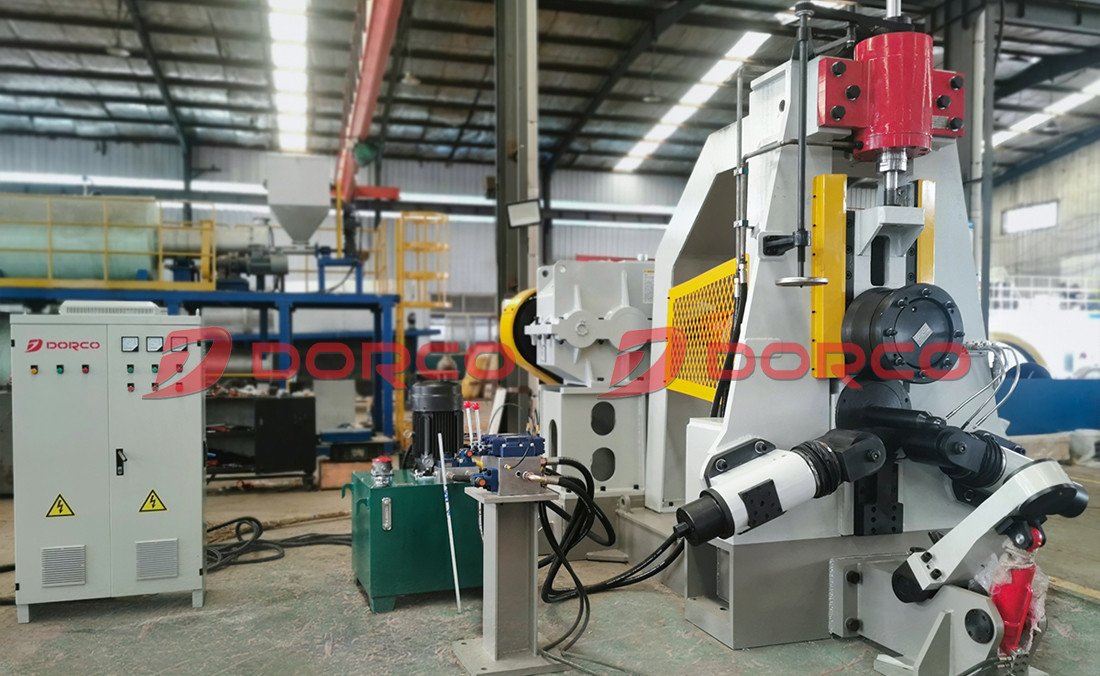

D51K630 is an advanced fully automatic CNC vertical ring rolling
machine designed for efficient and precise rolling of ring
forgings. Its core features are as follows:
Efficient hydraulic transmission: The hydraulic system is used as
the main transmission mode to ensure extremely smooth operation,
strong power, and rapid response of the equipment, significantly
improving production efficiency and environmental quality.
Precision control: D51K fully automatic CNC ring rolling machine,
driven by servo motor and PLC control system, achieves precise feed
motion control and increases the stability of ring processing.
High precision machining: D51K fully automatic CNC ring rolling
machine adopts digital to analog conversion module and encoder
interface control to achieve high-precision machining and ensure
the dimensional and shape accuracy requirements of the ring.
Structural optimization: D51K fully automatic CNC ring rolling
machine, with a long slide rail surface, rectangular cross-section,
high rail accuracy, and long service life.
Reliable sealing: D51K fully automatic CNC ring rolling machine,
cylinder adopts polyurethane YX sealing ring, reliable sealing and
wear-resistant.
Easy to operate: The D51K fully automatic CNC ring rolling machine
adopts a servo driven precision rolling mechanism, which is easy to
operate, stable in operation, and has a wide adjustable range.
Equipped with emergency stop buttons, safety protection devices,
and overload protection systems, it comprehensively ensures the
safety of operators and the long-term stable operation of
equipment.
DRC-D51K(H) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
DRC-D51K(P) | 160 | 250 | 350 | / | / | / | / | / | / |
Nominal outer diameter of grinding ring(mm) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
Range of outer diameter of rolling ring(mm) | 55-160 | 80-250 | 180-350 | 250-500 | 350-600 | 400-800 | 500-1000 | 600-1200 | 600-1300 |
Ring rolling height(mm) | 40 | 130 | 160 | 230 | 300 | 200 | 200 | 200 | 300 |
Radial rolling force(KN) | 50 | 150 | 300 | 500 | 550 | 550 | 800 | 800 | 800 |
Linear rolling speed(m/s) | 2.5 | 1.8 | 1.5 | 1.5 | 1.3 | 1.37 | 1.3 | 1.3 | 1.3 |
Cylinder stroke(mm) | 50 | 100 | 110 | 130 | 150 | 200 | 250 | 250 | 350 |
The CNC vertical ring rolling machine is an advanced equipment for efficient and precise manufacturing of high-performance annular forgings. It is widely used in the production of bearings, gears, flanges (especially flat welding and large diameter flanges), thin-walled cylindrical parts, as well as various connecting and transmission components. Its strong material adaptability (covering high-temperature alloy steel, bearing steel, carbon steel, copper, aluminum, etc.) and excellent process advantages (near net forming, excellent performance, high precision, high efficiency) make it an indispensable key equipment in many industries such as modern machinery manufacturing, automotive, wind power, aerospace, shipbuilding, petrochemicals, engineering machinery, etc., perfectly serving the application needs you described.
We can customize a specialized ring rolling process based on the shape, size, accuracy, and other requirements of the ring you need. Whether it is a simple circular ring or a complex shaped ring, Droco Heavy Industries can design a suitable rolling process to ensure that it meets your production needs.
|
|
