Product Description:

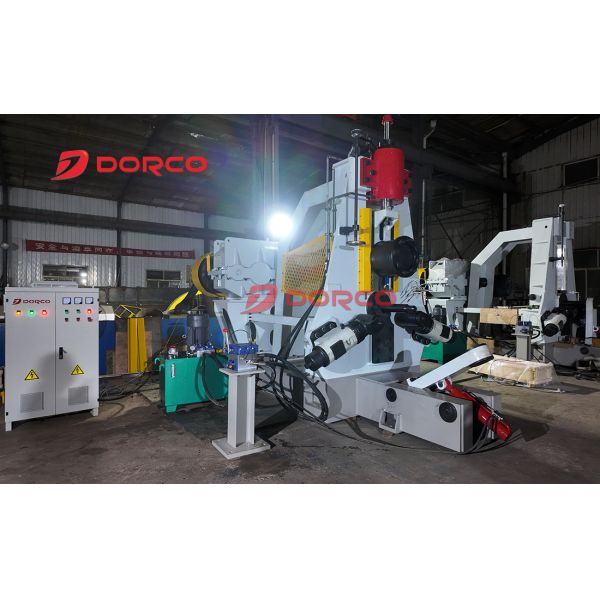

Our company has been deeply involved in the research and development of ring rolling equipment for many years, and has launched the DRC-D51K CNC vertical ring rolling machine, which is a reliable and efficient partner for many enterprises in the ring machining process.

Features:

The CNC vertical ring rolling machine has been upgraded on the original basis, with higher precision and more powerful functions;
A rolling process that can achieve a larger rolling ratio and roll more complex shaped products;
The signal wheel is controlled by servo and actively participates in rolling and forming, which can greatly improve and compensate for the rounded corner defects caused by blank problems in the product;
A newly designed human-machine interface with one click storage and one click switching of processing parameters;
Without the need for manual mechanical adjustment of the ring rolling machine, different process products can be processed by inputting parameters, reducing the difficulty of manual adjustment. Even ordinary operators can easily operate with simple training.
The loading and unloading space is larger, making it more suitable for combining with robotic arms to achieve forging automation.
Support remote monitoring and diagnostic functions. Enterprise managers and technicians can check the operation status of devices anytime and anywhere through terminal devices such as mobile phones and computers. When equipment malfunctions, technicians can remotely diagnose and repair the problem, greatly reducing equipment downtime and improving enterprise production efficiency.

Technical Parameters:

DRC-D51K(H)	160	250	350	450	550	800	1000	1200	1300
DRC-D51K(P)	160	250	350	/	/	/	/	/	/
Nominal outer diameter of grinding ring(mm)	160	250	350	450	550	800	1000	1200	1300
Range of outer diameter of rolling ring(mm)	55-160	80-250	180-350	250-500	350-600	400-800	500-1000	600-1200	600-1300
Ring rolling height(mm)	40	130	160	230	300	200	200	200	300
Radial rolling force(KN)	50	150	300	500	550	550	800	800	800
Linear rolling speed(m/s)	2.5	1.8	1.5	1.5	1.3	1.37	1.3	1.3	1.3
Cylinder stroke(mm)	50	100	110	130	150	200	250	250	350

Applications:

The DRC-D51K vertical ring rolling machine is suitable for the hot rolling and expansion process of ring hair, and is widely used in the processing and production of non welded ring parts such as bearings, flat welding flanges, large diameter flanges, and small thin-walled barrel parts. It can roll various metal materials, including high-temperature alloy steel, bearing steel, ordinary carbon steel, copper, and aluminum, and has low requirements for front-end drilling, which can improve production efficiency and product accuracy.
